阿法拉伐i-CP2000基于幾十年以來積累的專業知識而設計，可滿足絕大多數的處理需求，實現高效輕柔的流體輸送。該系列離心泵的設計符合zui高衛生標準，通過EHEDG認證，自帶橡膠部件均符合FDA要求，并采用的軸密封設計。
alfalaval衛生泵與我們系列離心泵一樣，也采用蝸殼泵體和計算機設計葉輪，確保高效運行。

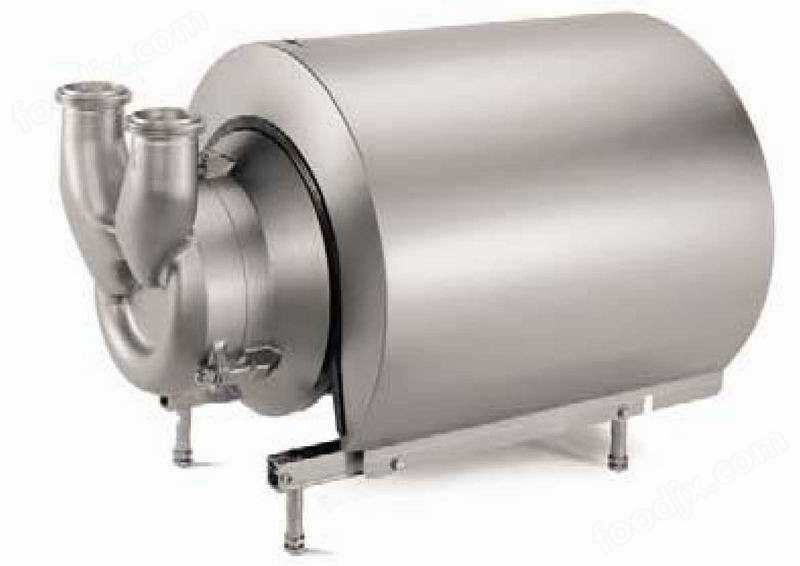

LCP Centrifugal Pump
離心泵 i-CP2000
阿法拉伐i-CP2000基于幾十年以來積累的專業知識而設計，可滿足絕大多數的處理需求，實現高效輕柔的流體輸送。該系列離心泵的設計符合zui高衛生標準，通過EHEDG認證，自帶橡膠部件均符合FDA要求，并采用的軸密封設計。
與我們系列離心泵一樣，也采用蝸殼泵體和計算機設計葉輪，確保高效運行。
- 軸密封設計
- zui大流速：140 m3/h
- zui大入口壓力：500 kPa (5 巴)
- 接觸液體部件的材質：不銹鋼1.4404 (316L)
- 節能型電機：阿法拉伐高效型2類電機
Applications
The Alfa Laval LCP pump is a highly efficient and economical
centrifugal pump, which meets the requirements of sanitary and gentle
product treatment and chemical resistance. LCP is available in six
sizes, LCP-10, -20, -25, -35, -40,-50.
Standard design
The LCP pump consists of a standard motor, stub shaft, mechanical
compression coupling, adaptor, back plate, impeller, pump casing and
shaft seal. The LCP pump is designed for CIP with emphasis on large
internal radii and easily cleanable seals. The LCP has a stainless steel
shroud for protection of the motor, and the complete unit is supported
on four adjustable legs.
Shaft seals
The LCP pump is equipped with an external single, flushed or double
mechanical shaft seal. All have stationary seal rings in acid resistant
steel AISI 316L with sealing surfaces in silicon carbide and rotating
seal rings in carbon (optional silicon carbide). Flushed seal is equipped
a secondary lip seal. Double mechanical seal is equipped with a
secondary mechanical seal.
Materials
Productwetted steel parts: . . . . . . . . .AISI 316L.
Other steel parts: . . . . . . . . . . . . . . .AISI 304, surface treated
carbon steel.
Finish: . . . . . . . . . . . . . . . . . . . . . .Semi bright.
Productwetted seals: . . . . . . . . . . . .EPDMelastomer (FDA).
Technical data
Max. inlet pressure: . . . . . . . . . . . . .500kPa (5 bar).
Temperature range: . . . . . . . . . . . . . .-10°C to +140°C (EPDM).
Flushed shaft seal:
Water pressure inlet: . . . . . . . . . . . . .Max. 50 kPa (0.5 bar).
Water consumption: . . . . . . . . . . . . .0.25 -0.5 l/min.
Temperature range . . . . . . . . . . . . . .0°C to +70°C
Double mechanical shaft seal:
Water pressure inlet: . . . . . . . . . . . . .Max. 500 kPa (5 bar).
Water consumption: . . . . . . . . . . . . .0.25 -0.5 l/min.
Temperature range . . . . . . . . . . . . . .0°C to +140°C
Connections for FSS and DMSS:
R 1/8" (BSP) external thread.
The Alfa Laval LCP pump is designed, tested
and approved according to EHEDG guidelines
食品與飲料
任何志在食品、飲料及啤酒釀造業取得*成功的公司都必須做到在技術上始終于其它的競爭對手。
阿法拉伐在熱交換、分離以及流體處理等諸多技術領域均處于世界地位，掌握上述專業領域至為關鍵的核心工藝。
這就意味著我們能夠確?？蛻粼诋a品口味、質地、外觀等方面始終具備優勢。而我們對全面可追塑性，zui高衛生標準，低生產周期成本和運營成本的不懈追求更是使這一優勢得以進一步加強。
我們寬闊的視野，豐富的資源以及超高的性標準在整個業界無人可及。
Motor
Foot-flanged motor according to the IEC metric standard, 2 poles =
3000/3600 rpm at 50/60 Hz, IP 55 (with drain hole with labyrinth plug),
insulation class F.
Voltage and frequency
3 ~, 50 Hz, 220-240V Δ/380-420VY ≤ 4 kW
3 ~, 60 Hz, 250-280V Δ/440-480VY ≤ 4.6 kW
3 ~, 50 Hz, 380-420V Δ/660-690VY ≥ 5.5 kW
3 ~, 60 Hz, 440-480VΔ ≥6.4 kW
Motor sizes
50 Hz: 1.5 - 2.2 - 3 - 4 - 5.5 - 7.5 - 11 - 15 -18.5 - 22 kW.
60 Hz:1.75 - 2.5 - 3.5 - 4.6 - 6.4 - 8.6 - 12.5 -17 - 21 - 25 kW.
Warranty
Extended 3-years warranty on LCP pumps. The warranty covers all
non wear parts on the condition that genuine Alfa Laval Spare Parts
are used.
LCP iCP centrifugal pump阿法拉伐泵 alfalaval衛生泵。
Options
A. Impeller with reduced diameter.
B. 1500 rpm. motor.
C. Flushed shaft seal.
D. Double mechanical shaft seal.
E. Surface roughness, product wetted parts: Ra ≤ 0.8 μm.
F. Product wetted seals of Nitrile (NBR) or Fluorinated rubber (FPM).
G. Rotating seal ring of Silicon Carbide.
Ordering
Please state the following when ordering:
- Pumpsize.
- Connections.
- Impeller diameter.
- Motor size.
- Voltage and frequency.
- Flow, pressure and temperature.
- Density and viscosity of the product.
- Options.
Note!
For further details, see also ESE00887.
This product has EHEDG certification
